Plug-in Vision Series Slim Bar LED

Plugin Vision Series: Slim Bar Style LED by Situ Art Lighting

A slim, discreet LED picture light with best-in-class coverage for Artwork of various sizes.

• Artwork Height: Standard: Up to 40" Tall and Tall: Up to 60"
• Four sizes (17", 30", 43", and 56") and two optical systems provide better coverage than other bar-style art lights. See the diagrams below for model-specific artwork size recommendations.


• Available in both plugin and hardwire configurations (including compatibility with most smart home systems like Lutron Caseta, etc.).


• The remote control (programmable to multiple lights—see video here) offers dimming via 60+ color-accurate (93-95+ CRI) LED light settings. It is not included in wall-dimmed or smart home systems.


• Available in 3 color temperature models: Color Tuning 2,70
  0K - 4,000K (CCT), 3,000K, or 2,700K.


• Color Tuning model is only available for plugins.


• A versatile and low-profile mounting system allows for attachment to Artwork or walls.

Plugin: Simply plug into the standard outlet and use the included remote control for operation. The power supply and extension cord are white (up to 11' total length). Black is available on request (leave a note at checkout). A recessed outlet mounting box like the Arlington DVFR1W-1 is used for outlet installation behind Artwork (not required). It is not compatible with legacy "clock box" style recessed outlets.

Hardwire: An electrician is recommended for installation. Four-gang electrical boxes, including the driver, should be used to cover the house. The system requires a customer-supplied wall dimmer or smart home system (0-10v and Phase/TRIAC dimming options are available).

Alternate versions of flush-mountedArtworkk are available upon request.

 Product Highlights

The Vision Series differentiated from the competition:

1) The only low profile bar style picture light capable of lighting Artwork up to 60” tall

2) A traditional bar-style art light in a slim configuration made in the USA and priced lower than the competition

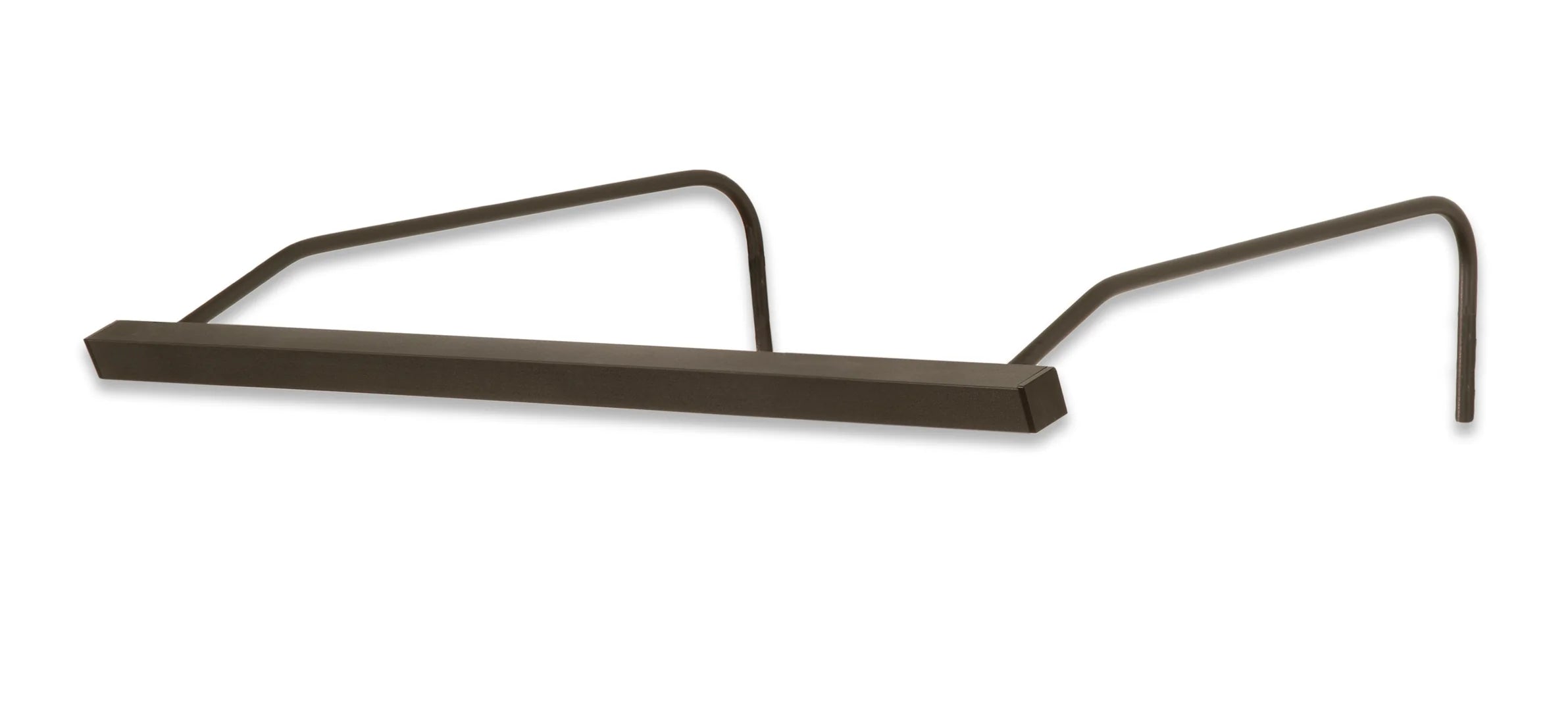

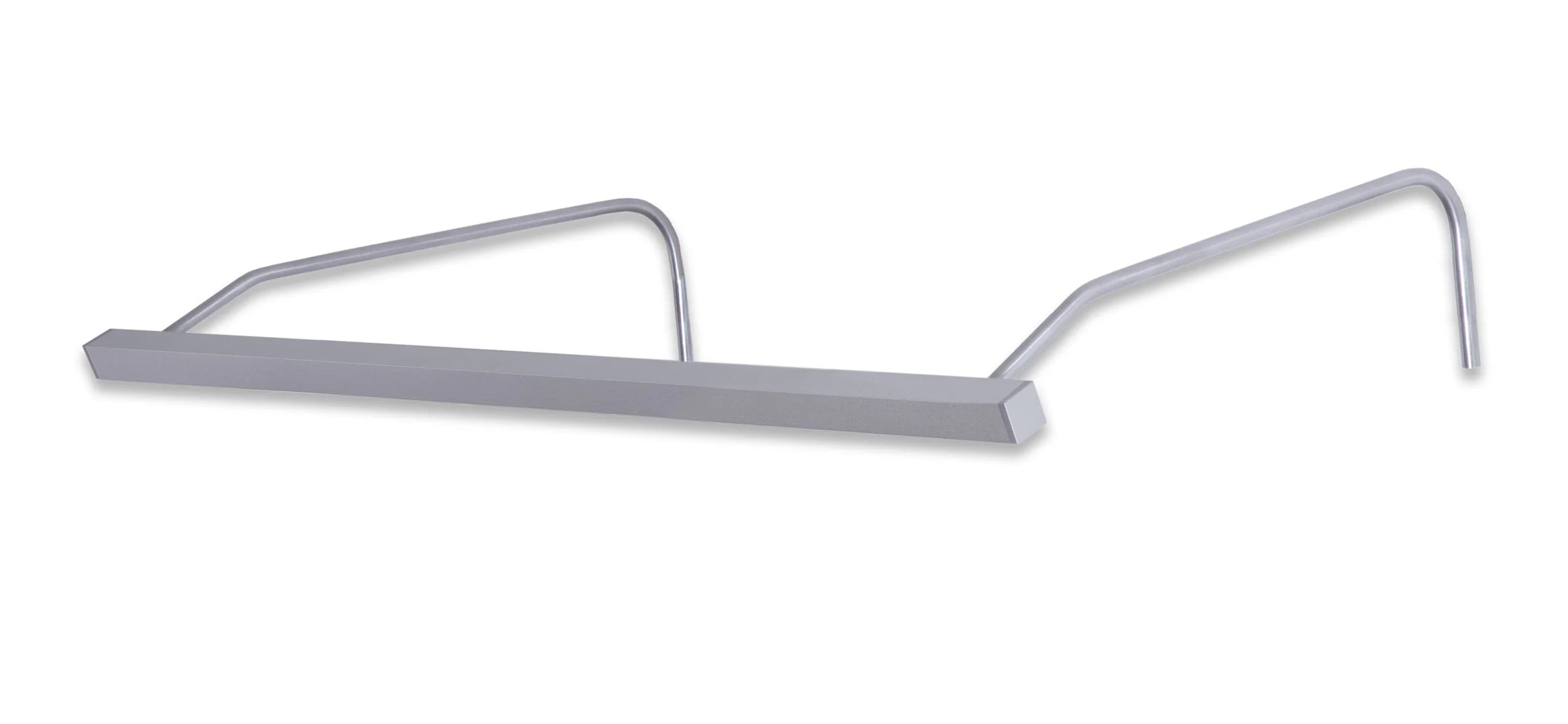

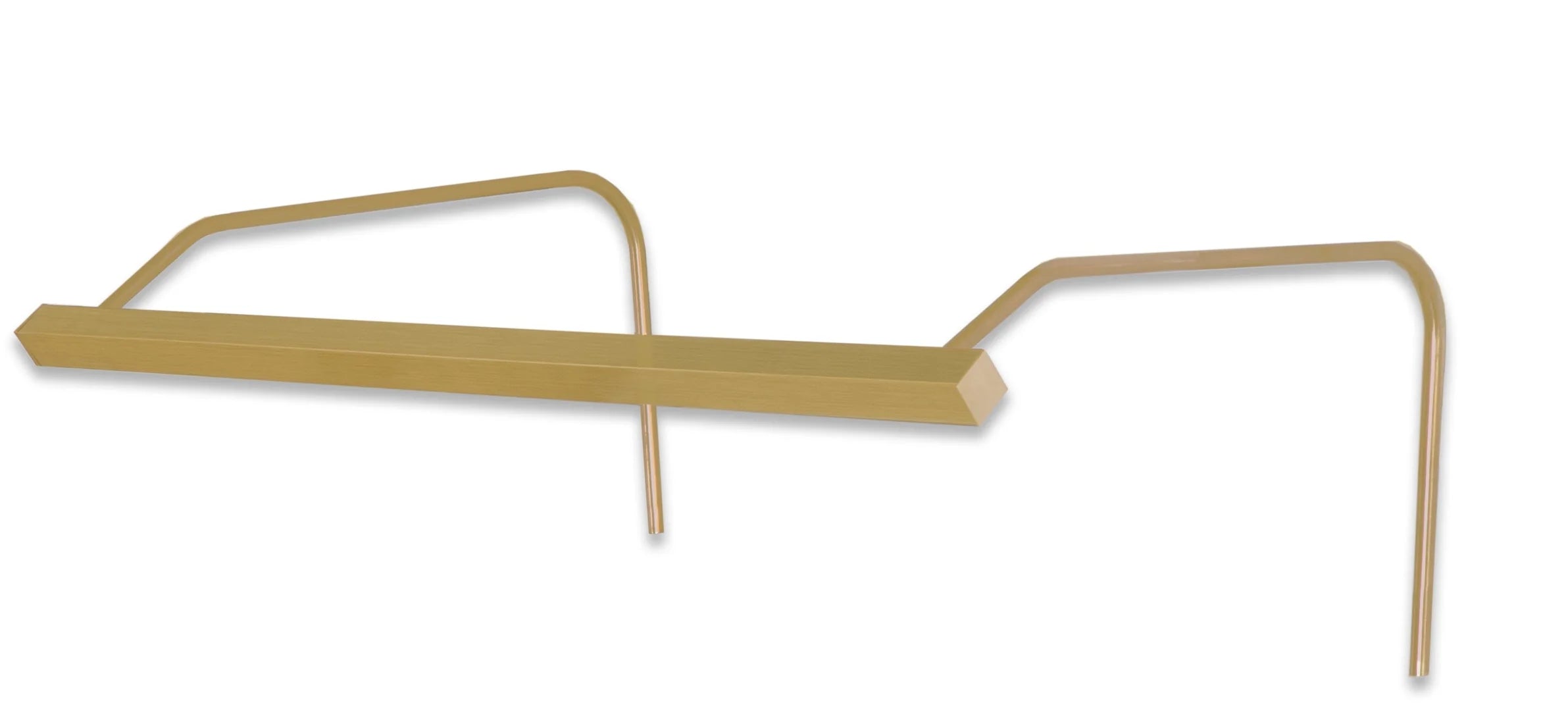

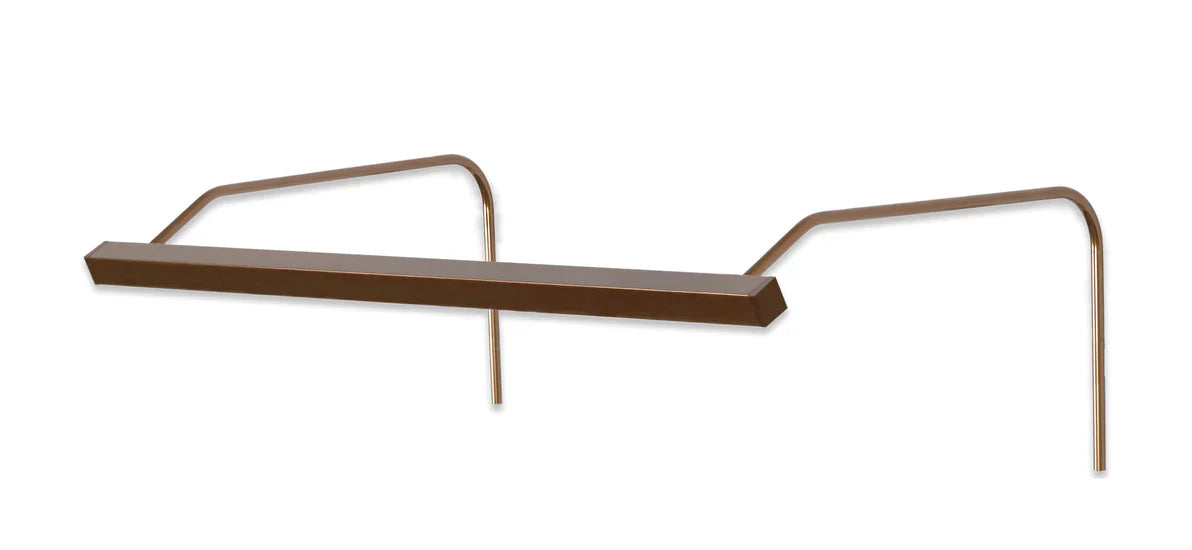

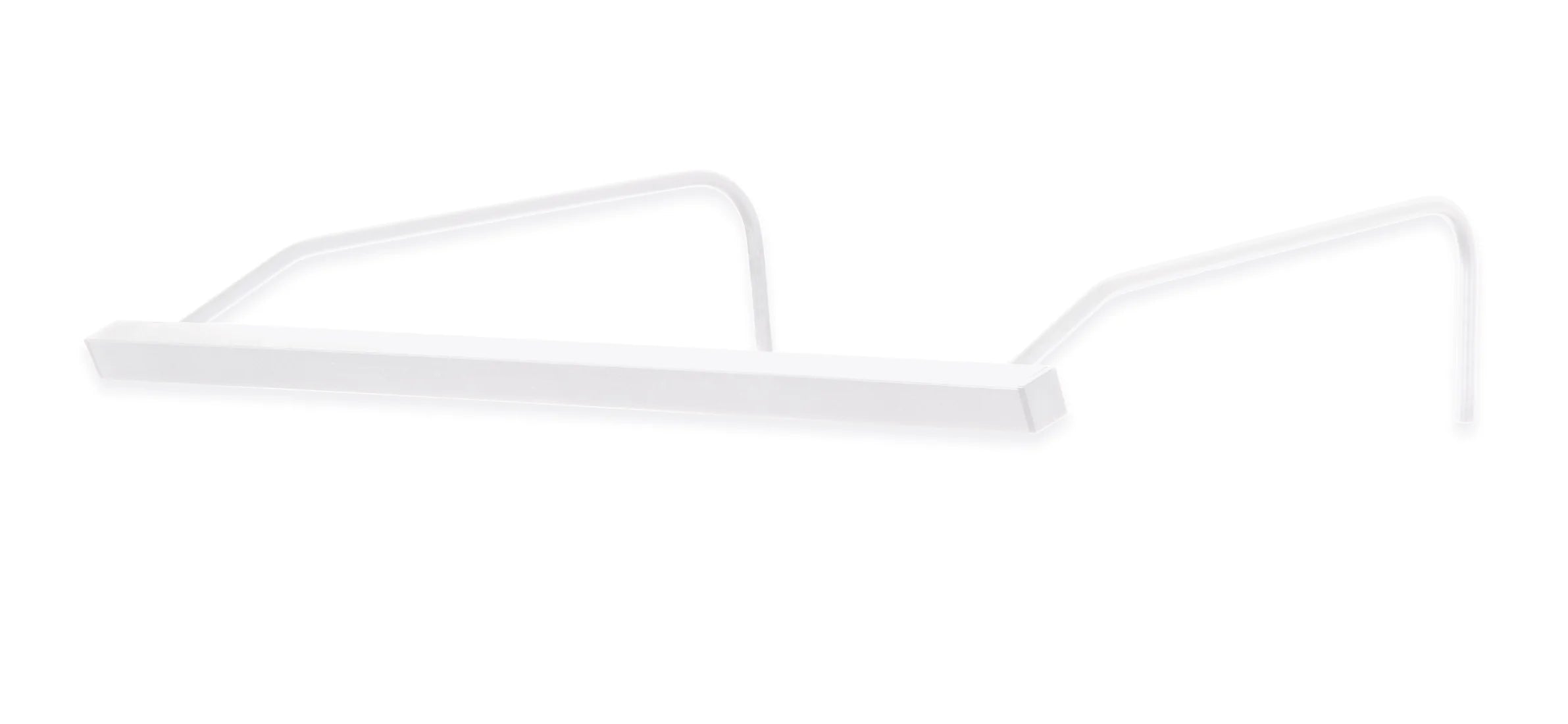

Available in  6 Finishes and 4 Sizes to Choose from

Tech Spec:

Remote control for easy access (not included for wall-dimmed or smart home systems)

Articulates for perfect light placement

60+ brightness settings

Slim, discreet design

93-95+ CRI

Color Tuning 2,700K - 4,000K, 3,000K or 2,700K (CCT) LED light

UV and infrared-safe

Convenient and low profile frame, canvas, or wall mounting

Energy efficient

UL Listed power supply

Tools recommended for installation: screwdriver, tape measure, pencil

Requires 3/8" clearance behindArtworkk

The regular model extends 10″ from the mounting surface. Short 7" variant available upon request.

Complete Specs - Click on the PDF Files Below:

PDF link Vision Series Manual

PDF Vision Series Cut Sheet

PDF Plugin Vision Series Flush Mount Addendum

PDF Example Recessed Outlet Mountinh Box

PDF Hardwire Wiring Diagrams (Does Not Apply to Plugin Version)

PDF Remote Control Programming

Return Policy

3-YEAR LIMITED WARRANTY (From Date of Purchase)
